Your Position: Home > Product > Other Products > Steel wire rope

STEEL WIRE ROPE

Update: 2014/9/4 View:

Brand: Renfeng
Type:
Price: RMB
Promotion: RMB ( 0 Customers Bought)

Introduction

RF-GSS 1

STEEL WIRE ROPE

RF-GSS 6×12+FC

Nominal Diameter (mm)	Approximate Weight (kg/100m)	(N/mm^2)Norminal T/S
		1470	1570	1670	1770	1870
		(KN)Min B/L
5	6.3	7.50	8.0	8.5	9.01	9.52
6	9.1	11.08	11.8	12.6	13.3	14.1
7	12.4	13.7	16.0	16.8	17.8	18.8
8	16.2	19.7	21.0	22.4	23.7	25.1
9	20.5	24.5	26.5	27.9	29.5	31.2
10	25.3	30.8	32.8	35.0	37.1	39.2
11	30.6	36.7	39.6	41.7	44.2	46.7
12	36.4	44.3	47.2	50.4	53.3	56.4
14	48.5	59.0	64.2	67.1	71.1	75.1
16	64.8	78.8	83.8	89.6	95.0	100.3
18	82.0	98.1	106.0	111.4	118.0	124.7
20	101.3	123.0	131.0	140.0	148.0	157.0
22	122.5	149.0	159.0	169.0	179.0	190.0
24	145.8	177.0	189.0	201.0	213.0	225.0
26	173.1	210.	221.0	239.0	253.0	268.0
28	194.1	241.0	257.0	274.0	290.0	307.0
30	228.0	277.0	295.0	314.0	333.0	352.0
32	259.0	315.0	336.0	358.0	379.0	400.0
34	290.0	355.0	378.0	404.0	428.0	452.0
36	328.0	398.0	426.0	453.0	480.0	507.0
38	365.0	444.0	474.0	504.0	535.0	565.0
40	405.0	492.0	525.0	559.0	593.0	626.0
42	446.0	542.0	579.0	616.0	653.0	690.0
44	490.0	595.0	636.0	676.0	717.0	757.0
46	539.0	651.0	695.0	740.0	784.0	828.0
48	583.0	709.0	757.0	805.0	853.0	902.0
50	633.0	769.0	821.0	874.0	926.0	978.0
52	684.0	832.0	888.0	945.0	1001.0	1058.0
54	738.0	897.0	958.0	1019.0	1080.0	1141.0
56	794.0	965.0	1030.0	1096.0	1162.0	1227.0
58	852.0	1035.0	1105.0	1176.0	1246.0	1316.0
60	912.0	1107.0	1183.0	1258.0	1330.0	1409.0

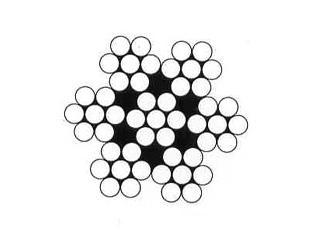

RF-GSS0208

RF-GSS0208
STEEL WIRE ROPE
6×12+FC

Nominal Diameter (mm)	Approximate Weight (kg/100m)	(N/mm^2)Norminal T/S
		1470	1570	1670	1770	1870
		(KN)Min B/L
5	6.3	7.50	8.0	8.5	9.01	9.52
6	9.1	11.08	11.8	12.6	13.3	14.1
7	12.4	13.7	16.0	16.8	17.8	18.8
8	16.2	19.7	21.0	22.4	23.7	25.1
9	20.5	24.5	26.5	27.9	29.5	31.2
10	25.3	30.8	32.8	35.0	37.1	39.2
11	30.6	36.7	39.6	41.7	44.2	46.7
12	36.4	44.3	47.2	50.4	53.3	56.4
14	48.5	59.0	64.2	67.1	71.1	75.1
16	64.8	78.8	83.8	89.6	95.0	100.3
18	82.0	98.1	106.0	111.4	118.0	124.7
20	101.3	123.0	131.0	140.0	148.0	157.0
22	122.5	149.0	159.0	169.0	179.0	190.0
24	145.8	177.0	189.0	201.0	213.0	225.0
26	173.1	210.	221.0	239.0	253.0	268.0
28	194.1	241.0	257.0	274.0	290.0	307.0
30	228.0	277.0	295.0	314.0	333.0	352.0
32	259.0	315.0	336.0	358.0	379.0	400.0
34	290.0	355.0	378.0	404.0	428.0	452.0
36	328.0	398.0	426.0	453.0	480.0	507.0
38	365.0	444.0	474.0	504.0	535.0	565.0
40	405.0	492.0	525.0	559.0	593.0	626.0
42	446.0	542.0	579.0	616.0	653.0	690.0
44	490.0	595.0	636.0	676.0	717.0	757.0
46	539.0	651.0	695.0	740.0	784.0	828.0
48	583.0	709.0	757.0	805.0	853.0	902.0
50	633.0	769.0	821.0	874.0	926.0	978.0
52	684.0	832.0	888.0	945.0	1001.0	1058.0
54	738.0	897.0	958.0	1019.0	1080.0	1141.0
56	794.0	965.0	1030.0	1096.0	1162.0	1227.0
58	852.0	1035.0	1105.0	1176.0	1246.0	1316.0
60	912.0	1107.0	1183.0	1258.0	1330.0	1409.0
